Shuttle
High-speed, high-density pallet handling. Shuttle Racking uses battery-powered shuttles to automatically move pallets within deep storage lanes, maximising capacity, speeding up operations, and improving safety throughout your warehouse.
What it is

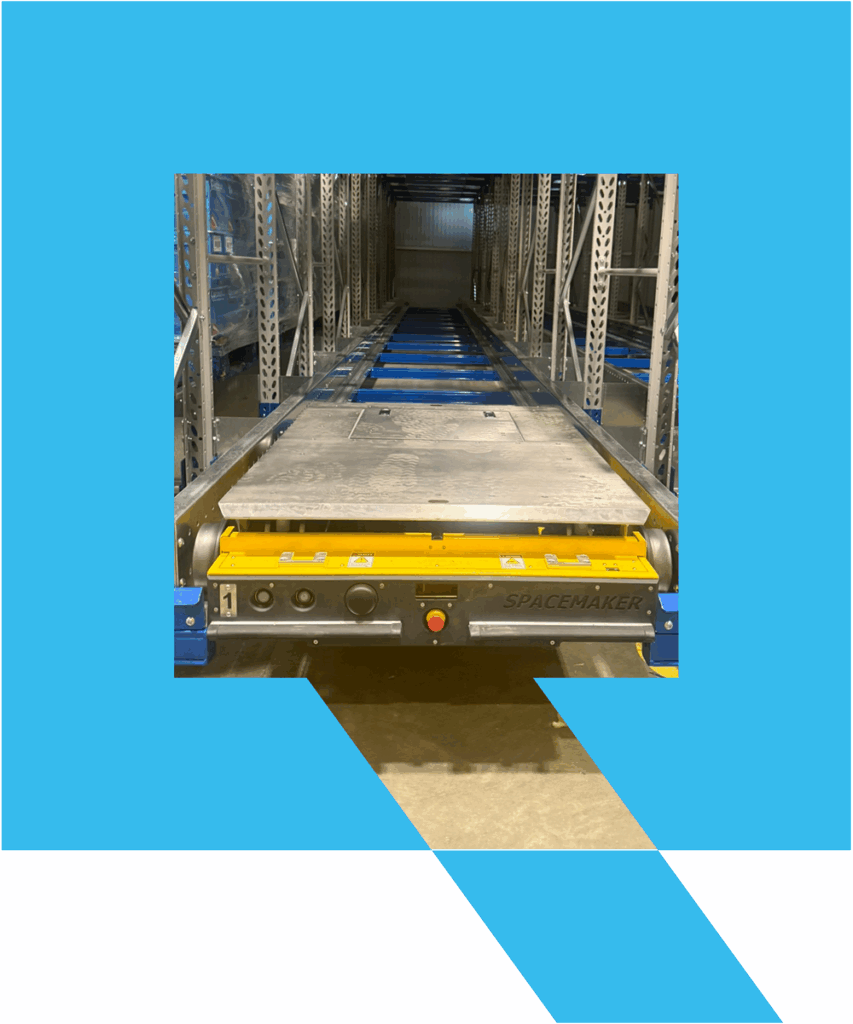

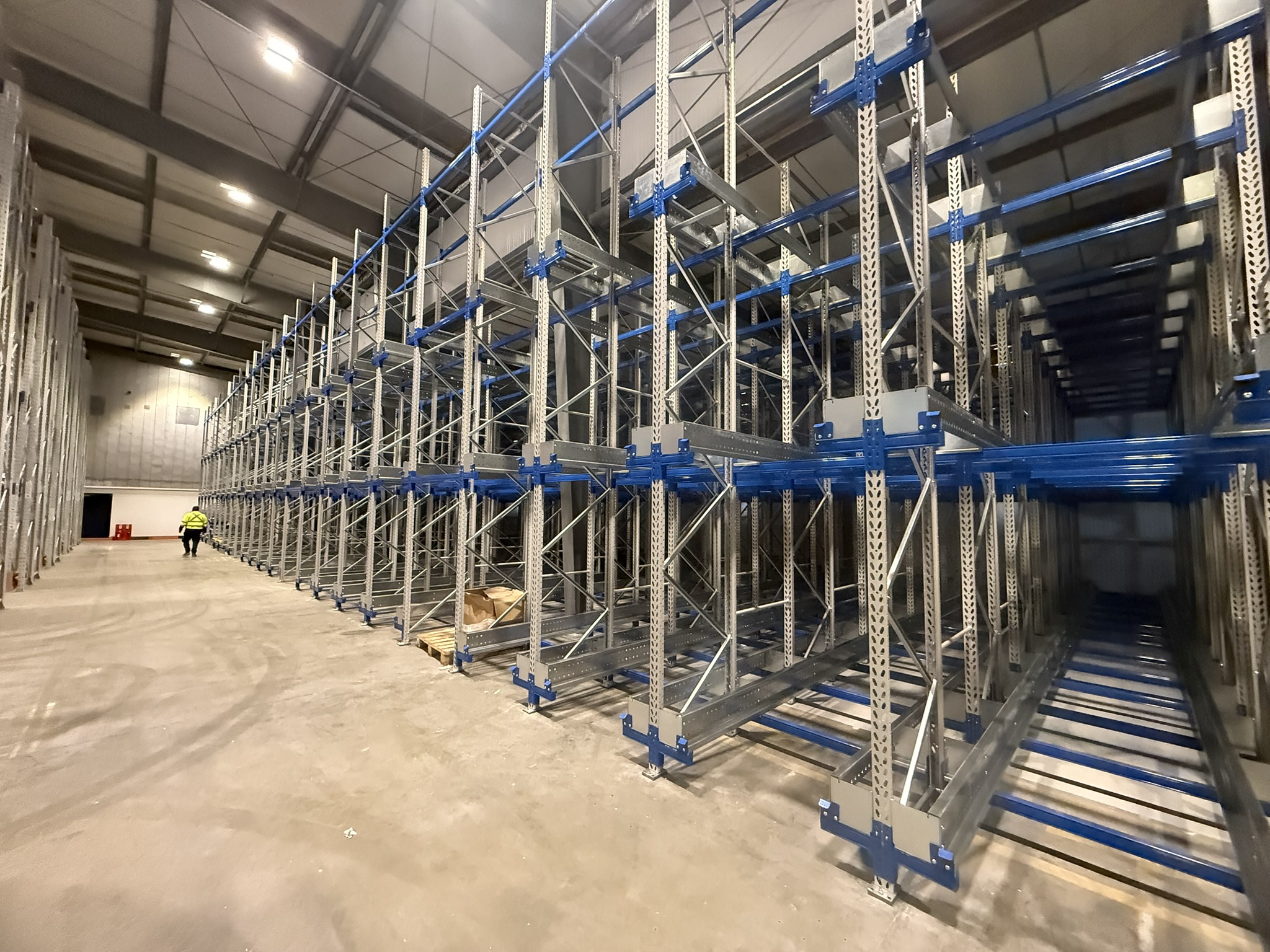

A semi-automated storage system that combines pallet racking with powered shuttle carts running on rails inside each lane. The shuttle moves pallets to their storage position and retrieves them on demand, controlled by a forklift operator using a remote or control interface. It offers the perfect balance between high-density storage and flexible, efficient access, with both FIFO and LIFO configurations possible.
How it works

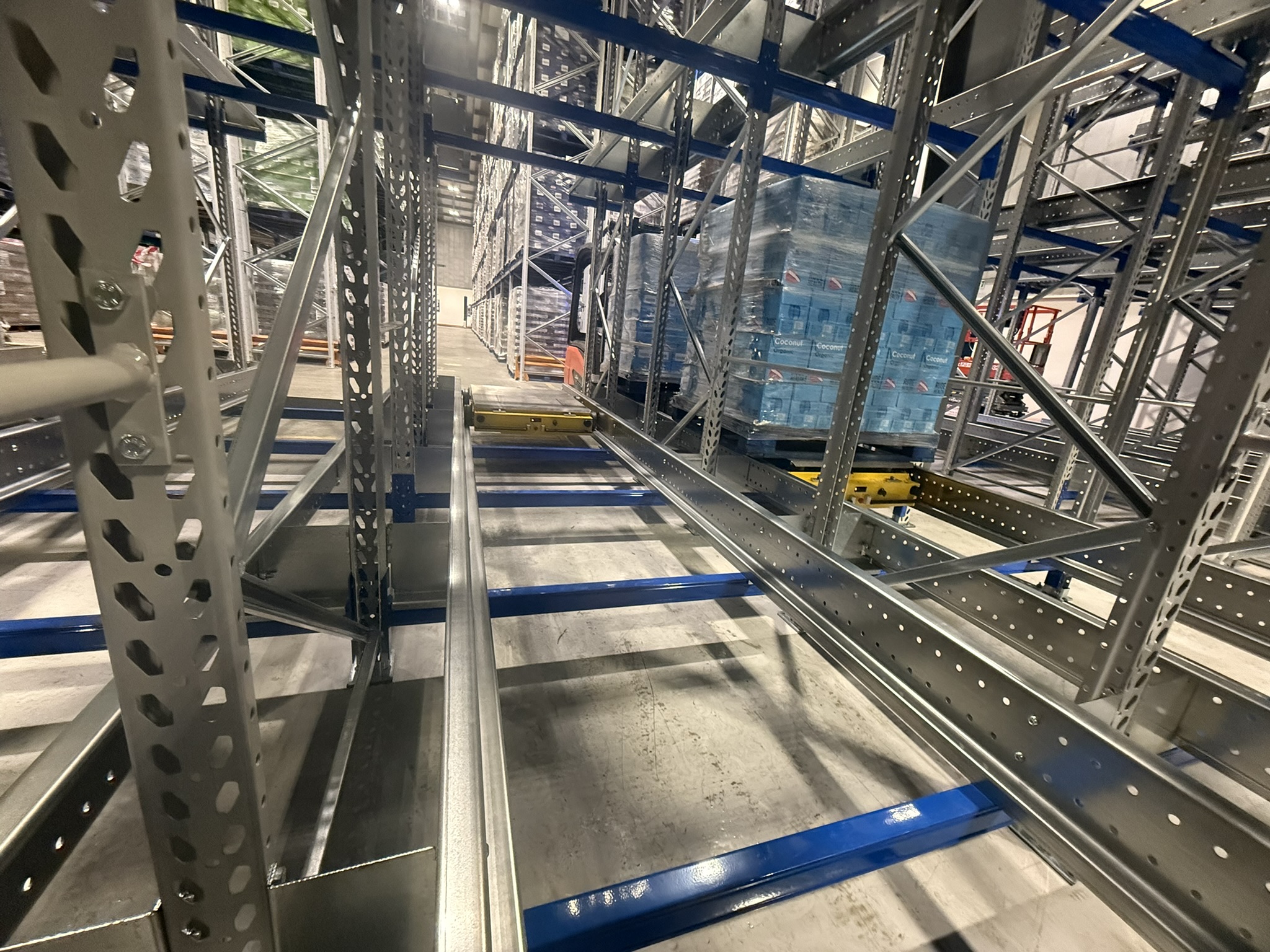

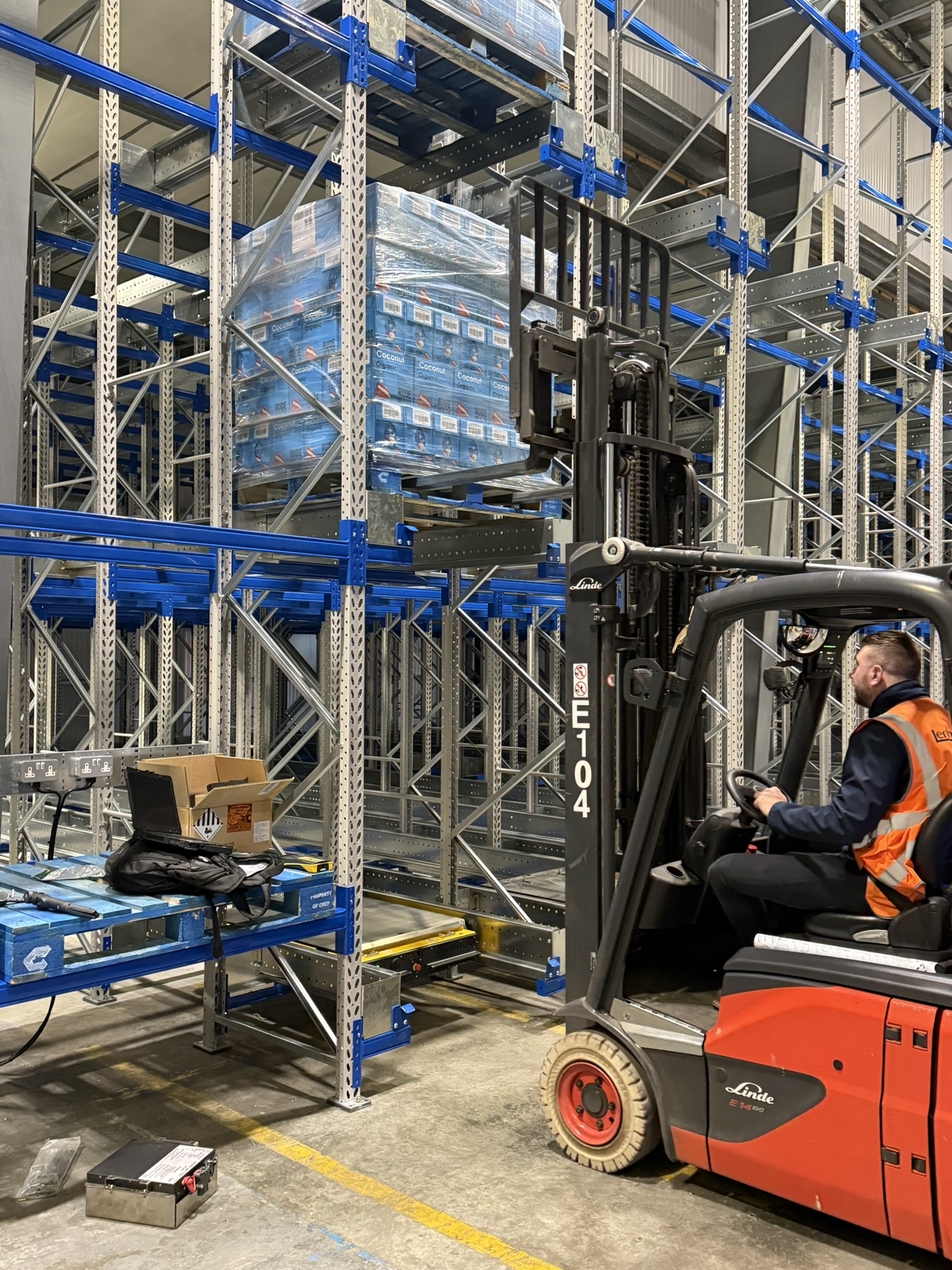

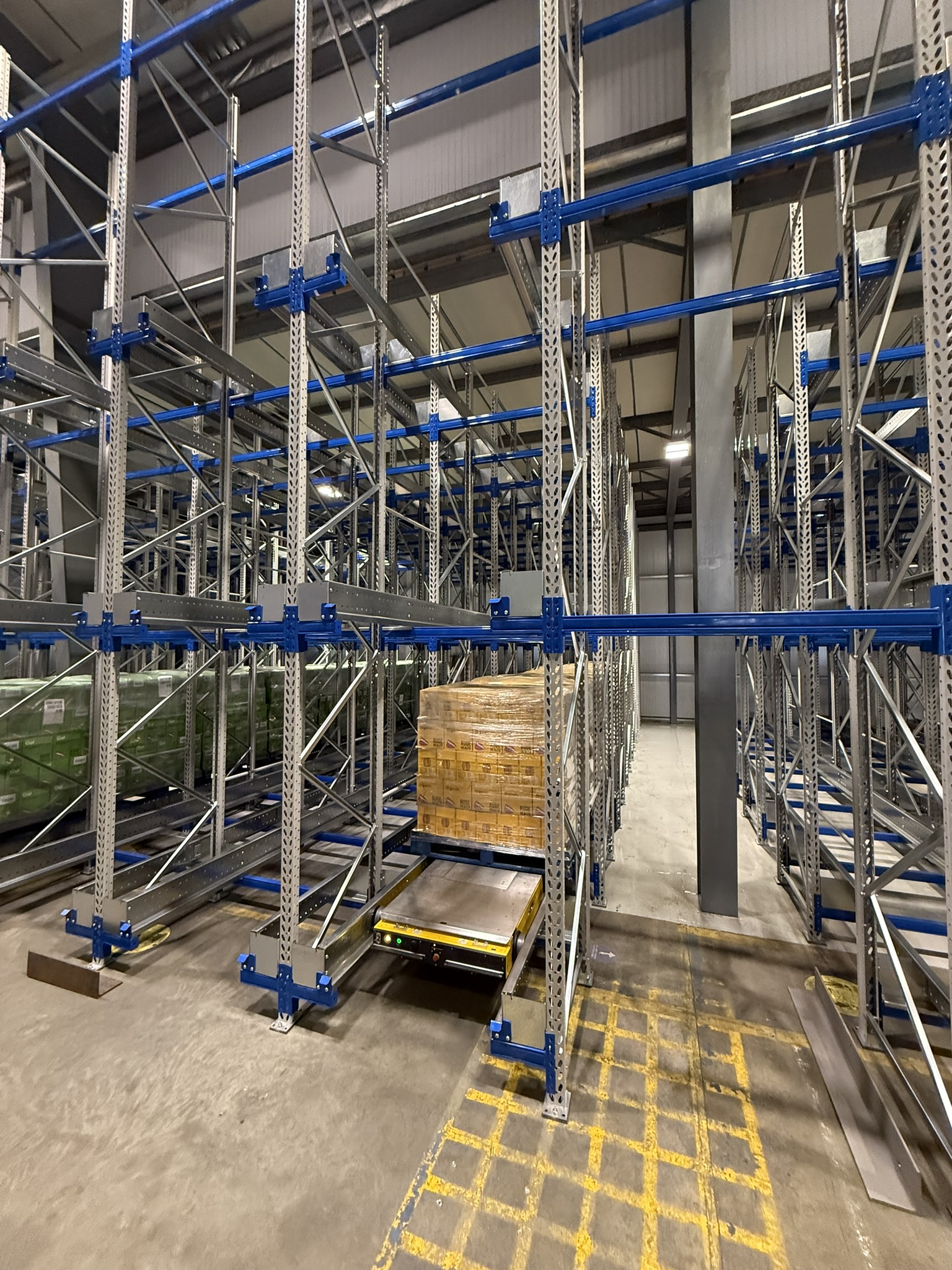

Forklifts place the shuttle in the selected lane. Once loaded, the shuttle automatically carries pallets deep into the channel and deposits them in the next available location. For retrieval, the shuttle brings pallets forward to the aisle for easy pick-up.
The process reduces forklift travel distances and manoeuvring, increases throughput, and eliminates the need for operators to drive into the racking structure, improving both speed and safety.
Where it fits
Ideal for high-volume pallet storage where fast inflow and outflow are essential.
Shuttle systems suit:
Cold and frozen storage environments
High SKU-density distribution centres
Seasonal or high-turnover products
Manufacturing buffers and pick-order staging
Warehouses requiring both FIFO and LIFO stock rotation
Key features
Battery-powered shuttle carts with smooth, automated operation
FIFO or LIFO modes for flexible stock rotation
Compatible with any racking layout and forklift type
Handles pallet weights up to 2,000 kg
Operates in temperatures from -30°C to +45°C
Integrates with WMS and automated handling systems
Remote control or software interface operation
Safety sensors and auto-return functions as standard
Benefits
Up to 50 pallets deep per lane for maximum density
Significantly faster loading and retrieval cycles
Reduced forklift travel and congestion in aisles
Less product damage and safer operations
Lower energy and labour costs through automation
Easily scalable - just add more shuttles for higher throughput
